- Hign-concerned Chemical: None
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Certification: CE
- Product Type: Toilet Tissue
- processing type: Paper Slitting and Rewinding Machine
- place of origin: Henan, China
- brand name: YG
- voltage: 220V/380V
- power(w): 5.5kw
- dimension(l*w*h): 5.5m*2.5m*1.75m
- warranty: 1 Year
- production capacity: 60 sets/month
- machinery test report: Provided
- video outgoing-inspection: Provided
- core components: PLC, Engine
- Name: Toilet paper rewinding slitting machine
- Raw material: Jumbo paper roll
- Output paper: Small toilet roll for daily life
- Color: Customized Color
- Application: Paper Industry
- Function: Rewinding –Embossing–Perforating–Cutting–Packing
- Control system: PLC control
- Certification: CE, ISO
- After-sale servie: Engineers available to serve machinery overseas
- Advantage: Fast Working Speed, High Efficiency
- Condition: New
- Warranty of core components: 1 Year
- Applicable Industries: hotels, Home Use, Retail, automatic toilet paper rewinding machine
- Weight: 3000 kg
- Marketing Type: Hot Product 2022

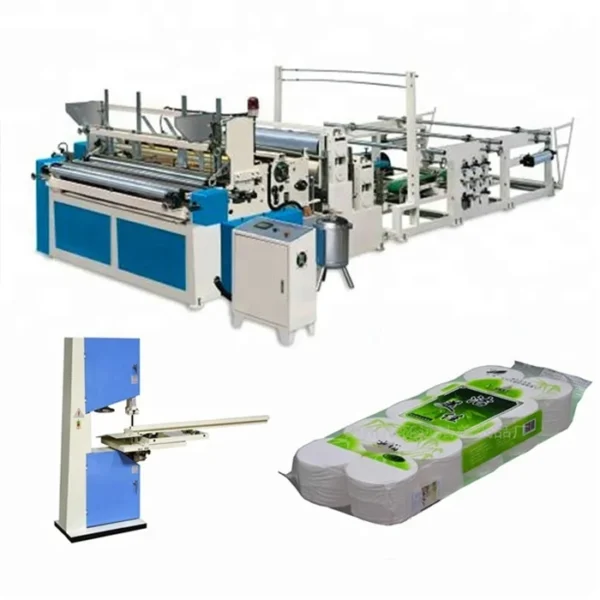

Hot sale toilet paper embossing printing rewinding cutting and sealing line
Toilet paper converting machine is widely used in toilet paper shaft, non-woven fabric, air-laid paper cutting rewinding, slitting width, layer number can be adjusted according to need, quick speed, stable running, simple operation, is the paper mill or cutting and ideal facilities for the production of paper products plant. this rewinding machine can be with embossing roller and paper tube feeder.we are factory for toilet paper rewinding machine, rewinding slitting machine, toilet paper converting machine,toilet paper roll making machine, toilet paper roll cutting machine, toilet paper roll packing machine, napkin paper machine,tissue paper machine and so on.
|
Machine Model
|
1092/1575/1880/2100/2400
|
|
Paper Width(mm)
|
1092mm/1575mm/1880mm/2100mm/2400mm
|
|
Paper Diameter(mm)
|
φ1200mm(Please Specify)
|
|
Paper Core Inner Diameter
|
φ76mm(Please Specify)
|
|
Product Diameter
|
φ40mm-200mm
|
|
Paper Backing
|
1-4layer,general chain feed or continuously variable transmission feed paper
|
|
Punch
|
2-4 Knife,Spiral Cutter Line
|
|
Hole Pitch
|
Positioning of Belt and Chain Wheel
|
|
Control System
|
PLC Control,Variable Frequency Speed Control,Touch Screen Operation
|
|
Product Range
|
Core Paper,Non Core Roll Paper
|
|
Drop Tube
|
Manual,Automatic(Optional)
|
|
Non core roll paper
|
automtic core pulling
|
|
Production Speed
|
150-280m/min
|
|
Spray,Cutting and Rewinding
|
Automtic
|
|
Finished product launch
|
Automtic
|
|
Point Moving Mode
|
Before and After the Point Moving
|
|
Power Configuration
|
380V50HZ
|
|
Required air pressure
|
0.5Mps(The Self)
|
|
Embossing
|
Single Embossing,Double Embossing(Steel Roller to Wool Roller,Steel Roller)Optional
|
|
Blank Holder
|
Airbag Control,Cylinder Control,Steel to Steel Structure
|
|
Outline Dimension
|
6200mm-7500mm*2600mm-3200mm*1750mm
|
|
Machine Weight
|
2900KG-3800KG
|
