- Hign-concerned Chemical: None
- Condition: New
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Certification: CE
- product type: Paper Cup Machine
- processing type: Paper Folding Machine
- place of origin: Henan, China
- brand name: YUGONG
- voltage: 380V
- power(w): 11.5kw
- dimension(l*w*h): 1750x1350x1850mm
- warranty: 2 years
- production capacity: 60-90pcs/min
- machinery test report: Provided
- video outgoing-inspection: Provided
- core components: PLC, Gear, motor, Pump, Bearing
- Item: High Speed Paper Cup Making Machine Line
- Model: YGM-22D
- Power: 11.5kw
- Product Capacity: 50-90cups/min
- Raw Material: Single PE coating paper
- Weight: 2200kg, 2200 kg
- Dimension of Main Machine: 1750x1350x1850mm
- Dimension of Packing Machine: 1220x950x2080mm
- Keyword (1): Paper Cup Making Machine
- Keyword (2): Paper Cup Machinery
- Applicable Industries: Manufacturing Plant
- Showroom Location: None
- Condition: New
- Warranty of core components: 3 years
- Marketing Type: Cheap & Fast Delivery

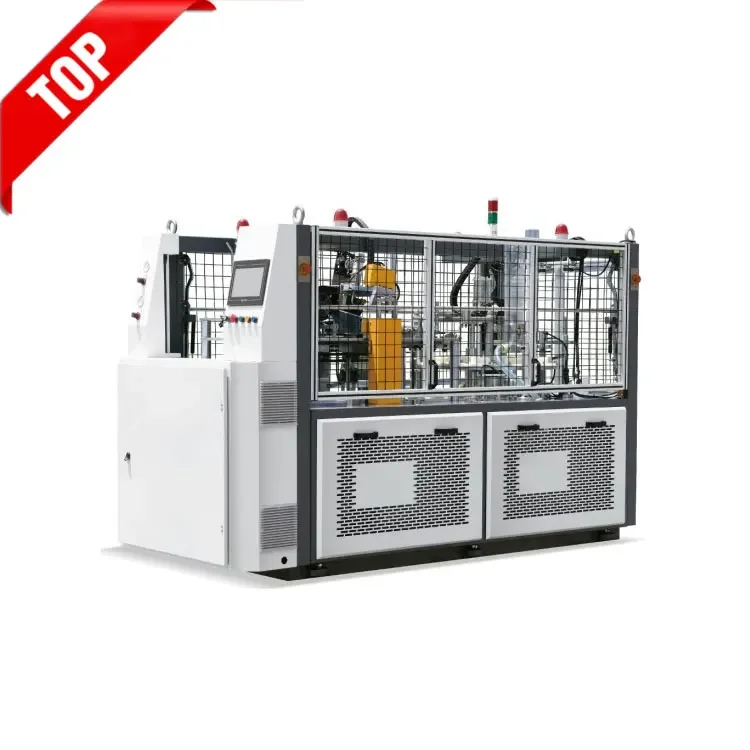

Fully Automatically High Speed Paper Cup Making Machine Line
YGM-22D middle speed paper cup forming machine adopts the latest technology to make it energy-efficient, economical and durable. The shape is exquisite and the molds can be changed. SiNi will strive continuously to pursue the excellence in science and technology innovation. This paper cup forming machine adopts open cam design, automatic oil lubrication system and PLC control system to improve the machine function and performance.
Technical Parameters
|
Model |
YGM-22D |
YGM-22S |
|
Cup size |
6oz-22oz |
|
|
Raw material |
Single PE coating paper |
Single and double PE coating paper |
|
Paper thickness |
160-280gsm |
160-300gsm |
|
Top mouth diameter |
60mm-90mm |
|
|
Bottom diameter |
40mm-70mm |
|
|
Bottom depth |
5mm-10mm |
|
|
Height |
60mm-180mm |
|
|
Capacity |
60-90 cups per minute |
|
|
Main motor power |
1.5kw |
|
|
Total power |
11.5kw |
16kw |
|
Energy consumption |
6-6.5 kw / hour |
7-7.5 kw/ hour |
|
Air consumption |
0.4m3/min, 0.5-0.8Mpa |
|
|
Weight |
2200kg |
|
|
Dimension |
1750x1350x1850mm 1220x950x2080mm |
1900x1350x2000mm 1220x950x2080mm |
Middle Speed Paper Cup Forming Machine Min. and Max. Cup Size
Paper Cup Packing Machine
